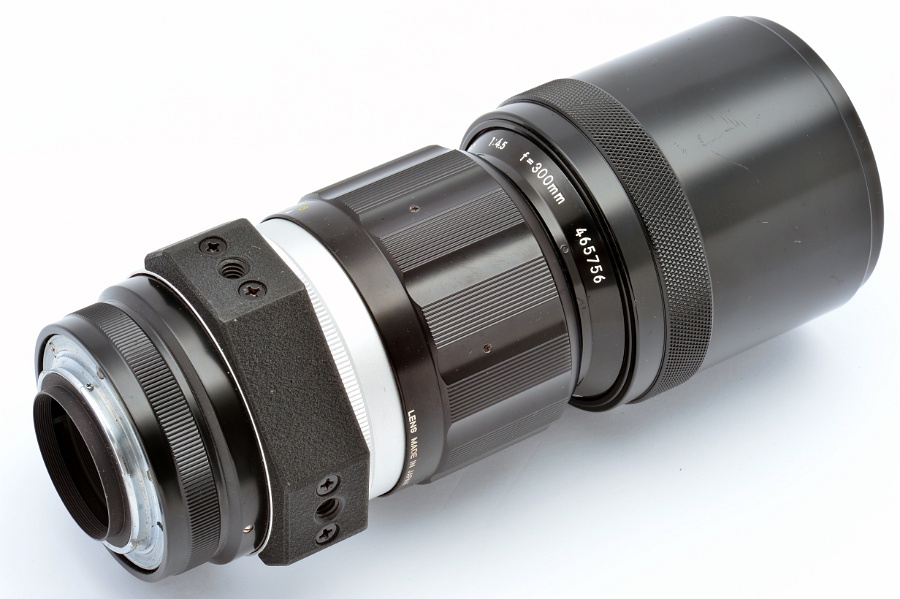

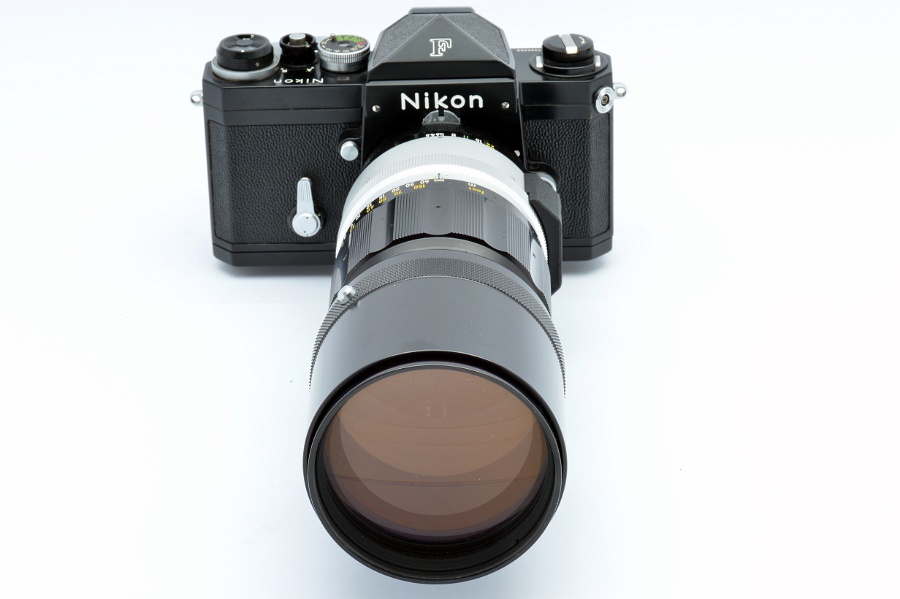

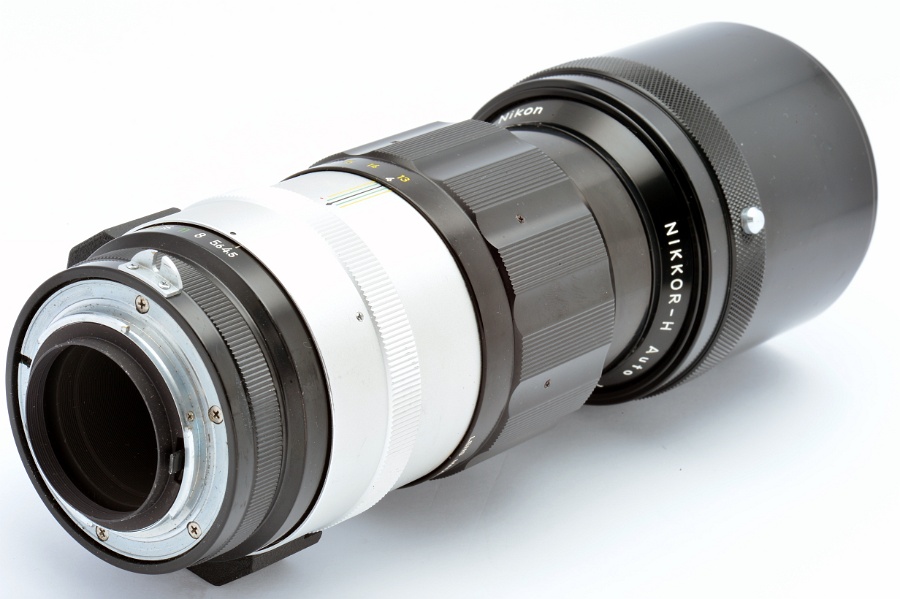

NIKKOR-H Auto 1:4.5 f=300mm 465756

mouseover to enlarge

• «Nikon»
• production year 1974
• first 300mm «Nikon» lens was #430001
• 6 elements in 5 groups
• picture angle 8°10′
• built-in retractable lens hood
• black front ring, filter ∅ 72mm
• distance scale graduated in meters and feet from 4m (13 ft.) to infinity (∞)
• «LENS MADE IN JAPAN» on black focusing ring («M» with vertical sides)
• milled aperture setting ring
• built-in horizontal and vertical tripod mount
• aperture scale f/4.5 to f/22
• 6 iris blades
• bayonet fixed by 5 cross-head screws
• dimensions approx. 80mm ∅ x 203mm
• weight approx. 1070g
• Nikon 72mm screw-in front lens cap, black
• Nikon LF-1 rear lens cap
• pre-owned by German race driver D. Glemser
