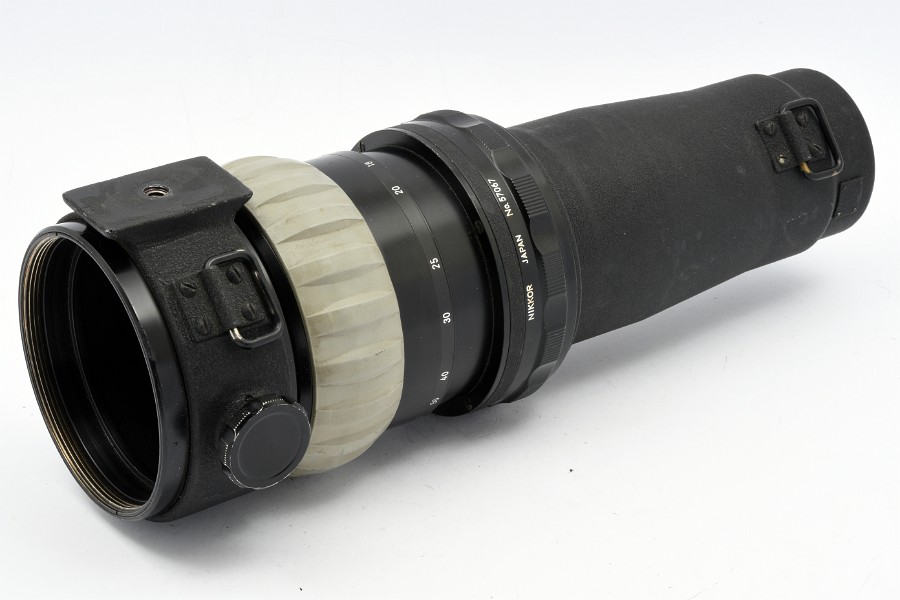

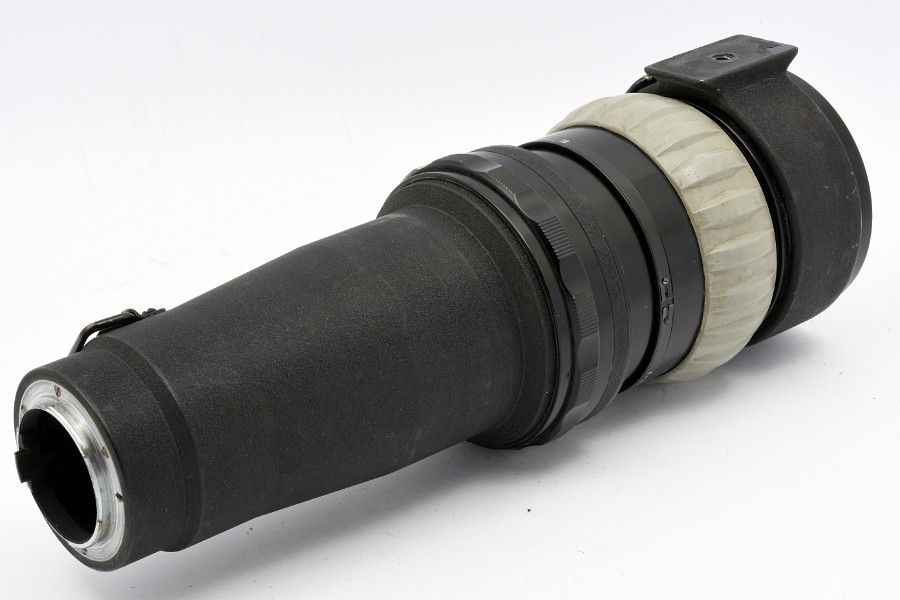

NIKKOR Focusing Unit for Long Focus Lenses No.57067

mouseover to enlarge

• production year 1965
• type 3

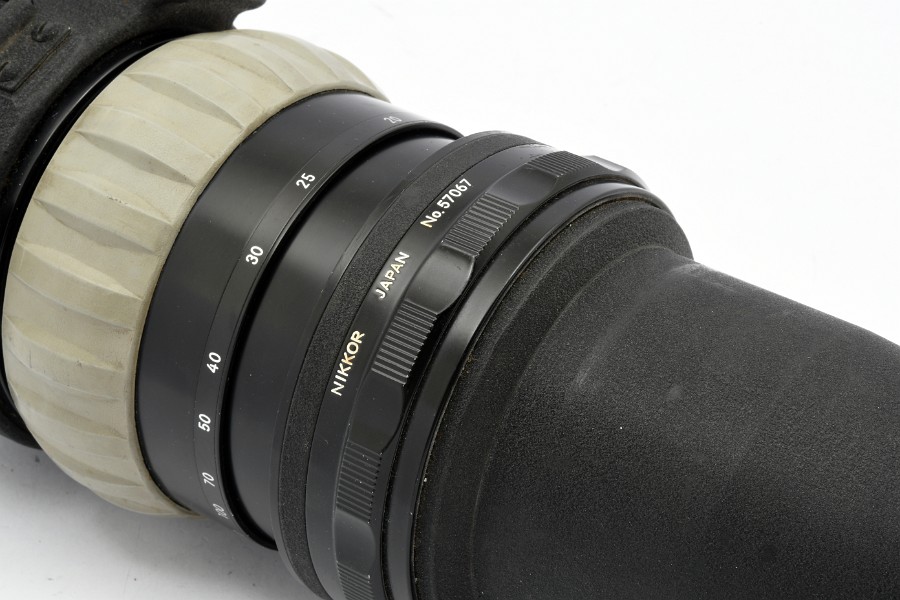

• «NIKKOR JAPAN»
• 88mm screw-in lens mount (P=1.5mm)

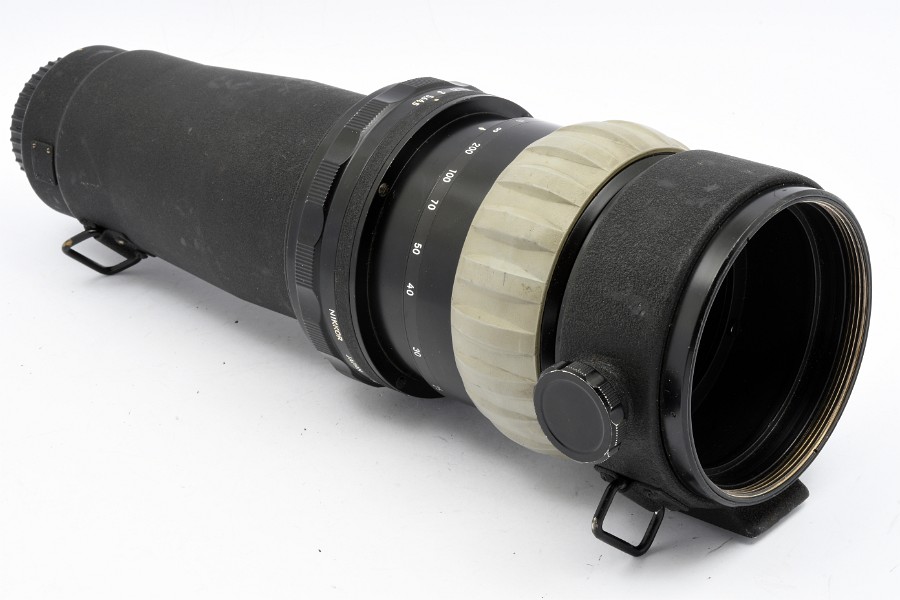

• revolving tripod socket with large scalloped clamp screw
• small window near the aperture coupling lever

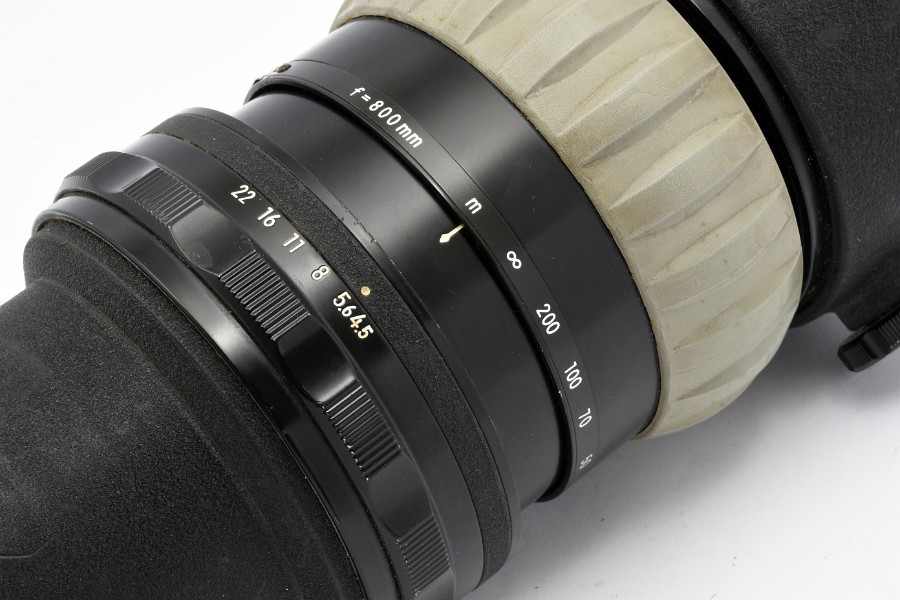

• distance scale plate for 800mm lens head, calibrated in meters only, focusing range ∞ to 18 meters (60 ft.)
• apertures 4.5 to 22
• 9 iris blades
• bayonet fixed by 5 slot screws

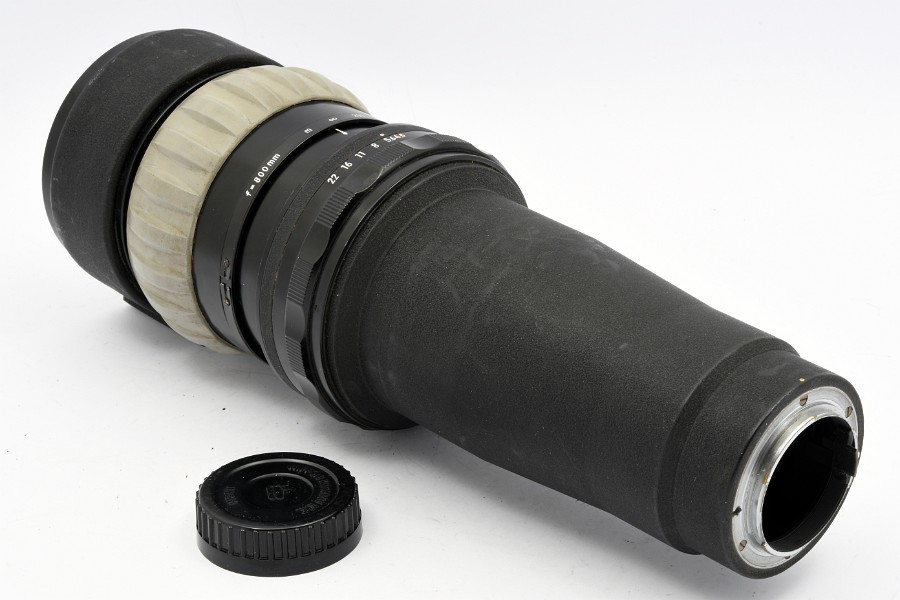

• F NKT-logo rear lens cap

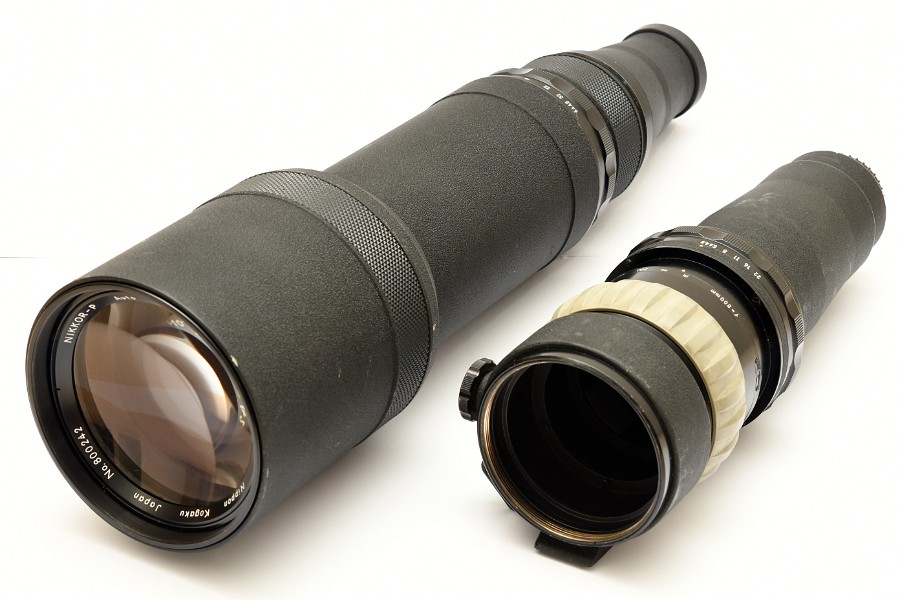

• matches NIKKOR-P 1:8 f=800mm No.800242
