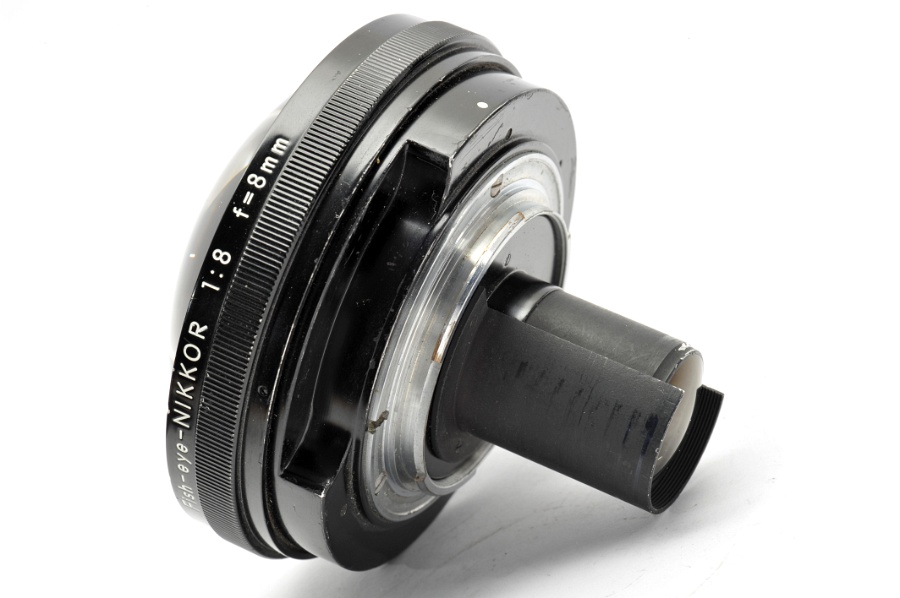

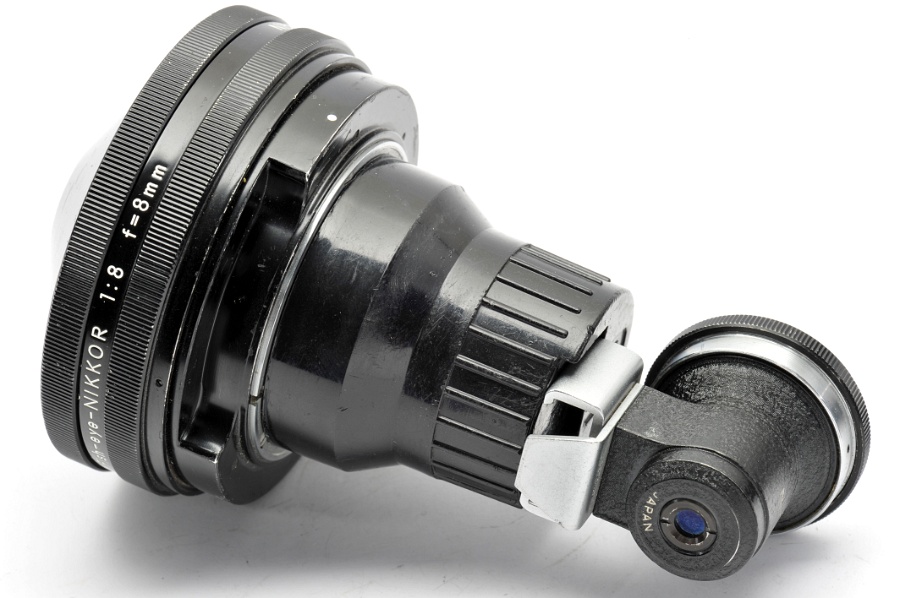

Fish-eye-NIKKOR 1:8 f=8mm No.88580
mouseover to enlarge
- «Nippon Kogaku Japan», production year 1963
- 570th lens produced (first 8mm lens was No.88011)
- 9 elements in 5 groups, picture angle 180°, image size on film: 24mm ∅ circle
- black front ring, cap ∅ 79mm
- focusing range universal
- no «LENS MADE IN JAPAN»

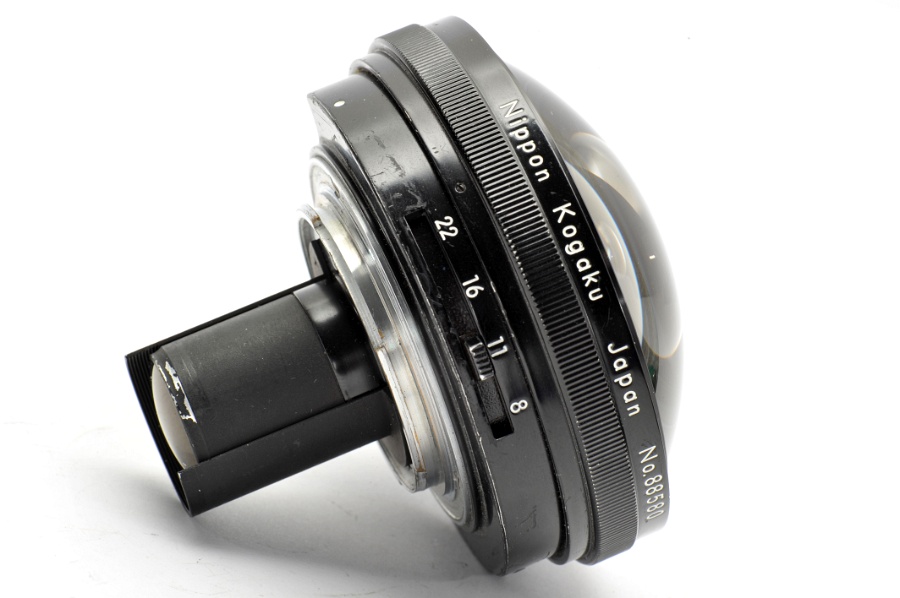

- apertures 8 to 22, 6 iris blades

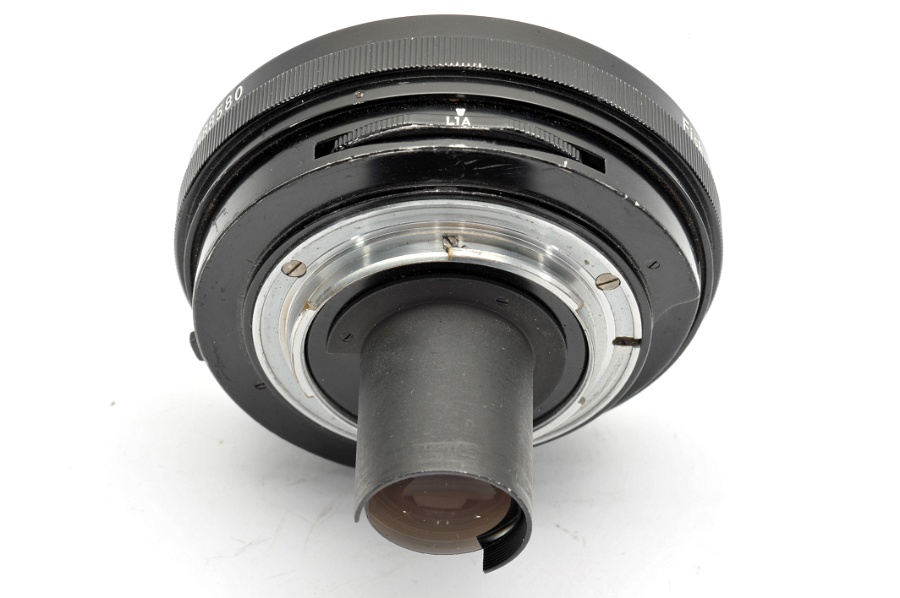

- built-in filters L1A, Y48, Y52, O57, R60, X0

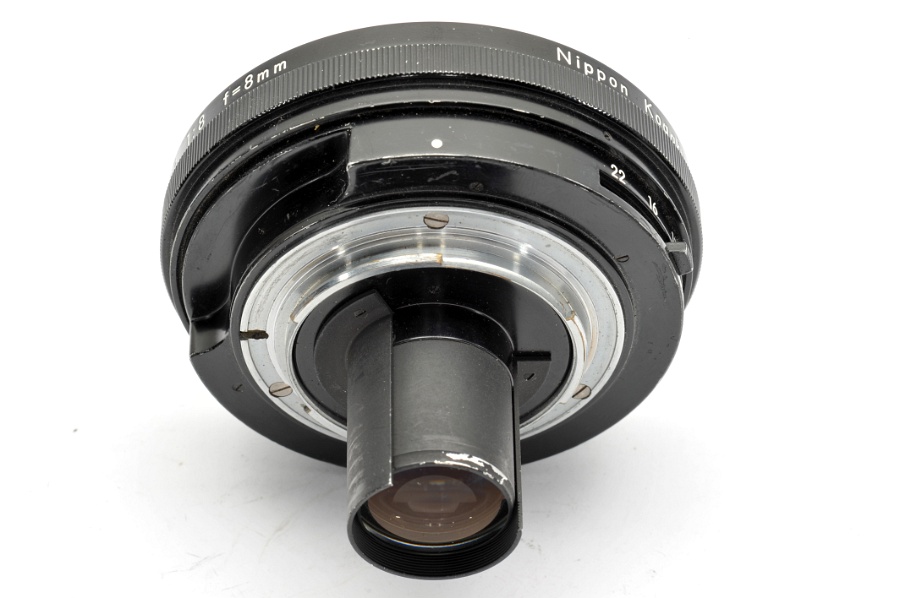

- bayonet fixed by 3 slot screws
- dimensions approx. 82mm ∅ x 77mm
- weight approx. 300g

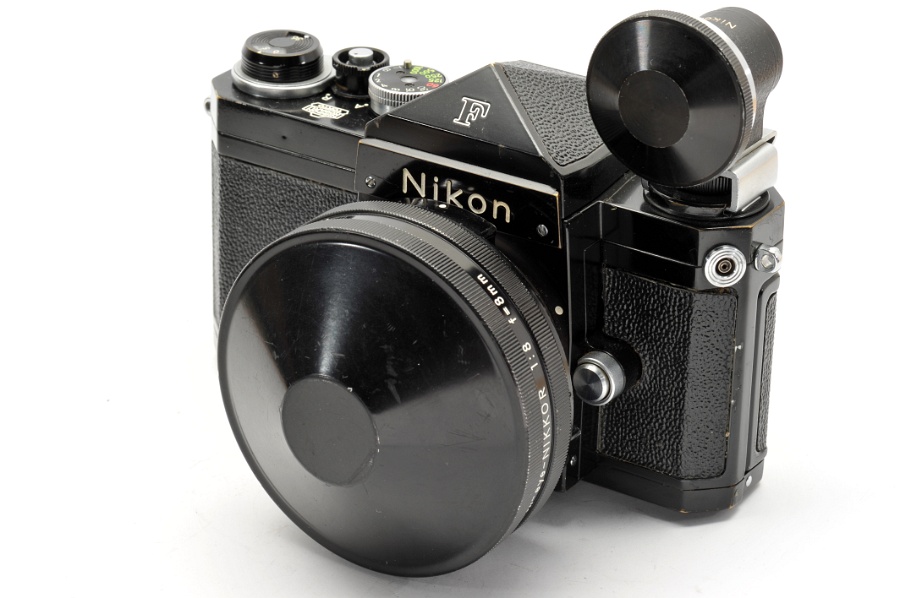

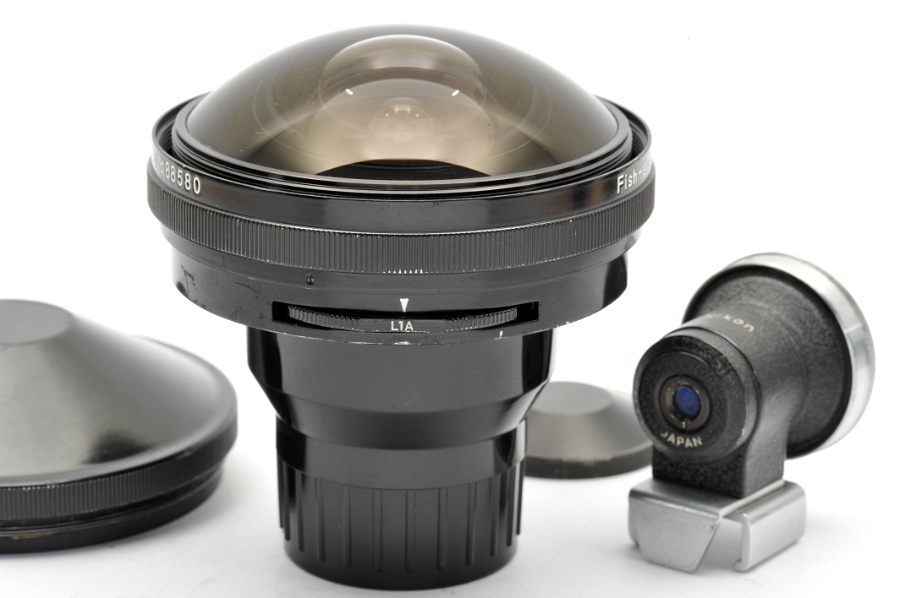

- 79mm screw-in front lens cap, no engraving
- NIPPON KOGAKU 3F rear lens cap

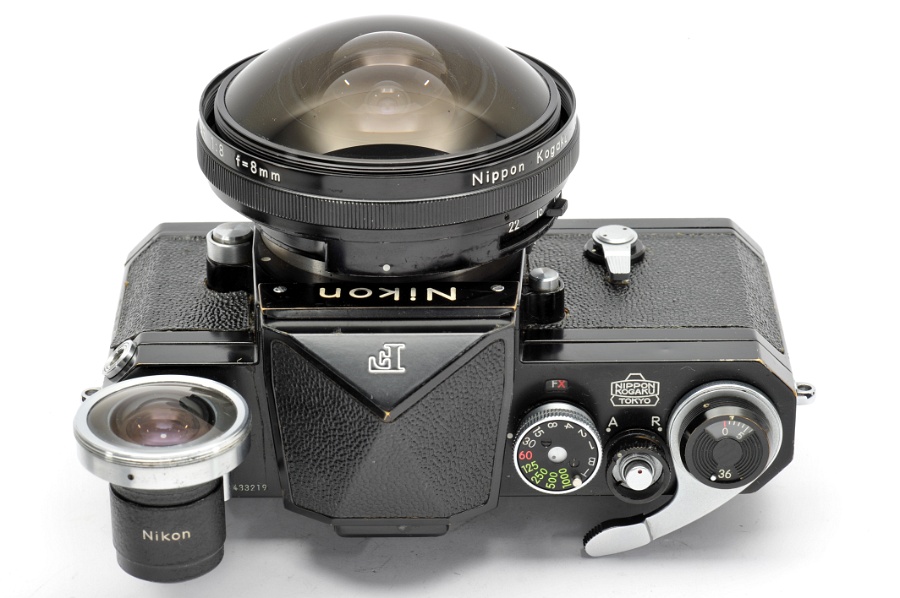

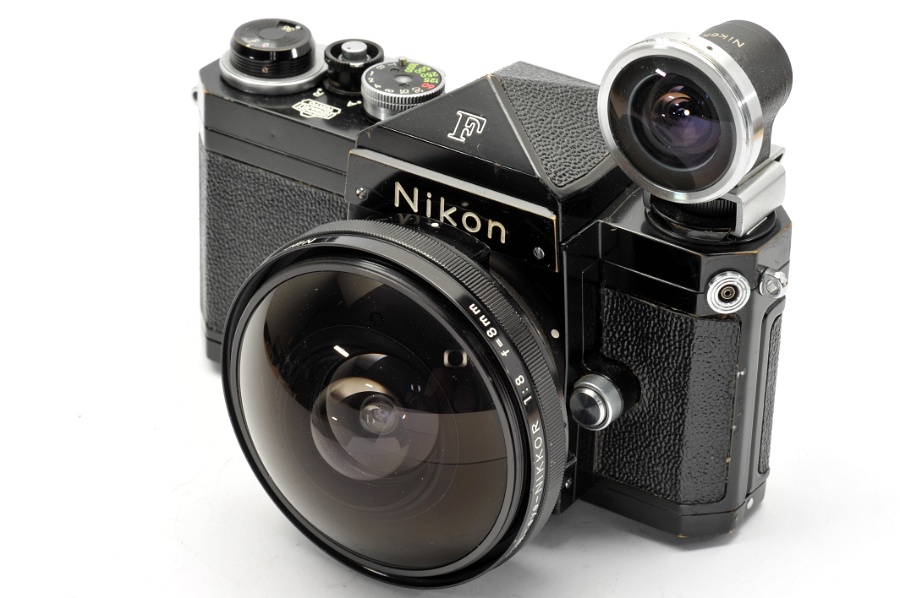

- Nikon Fish-eye viewfinder #387349
