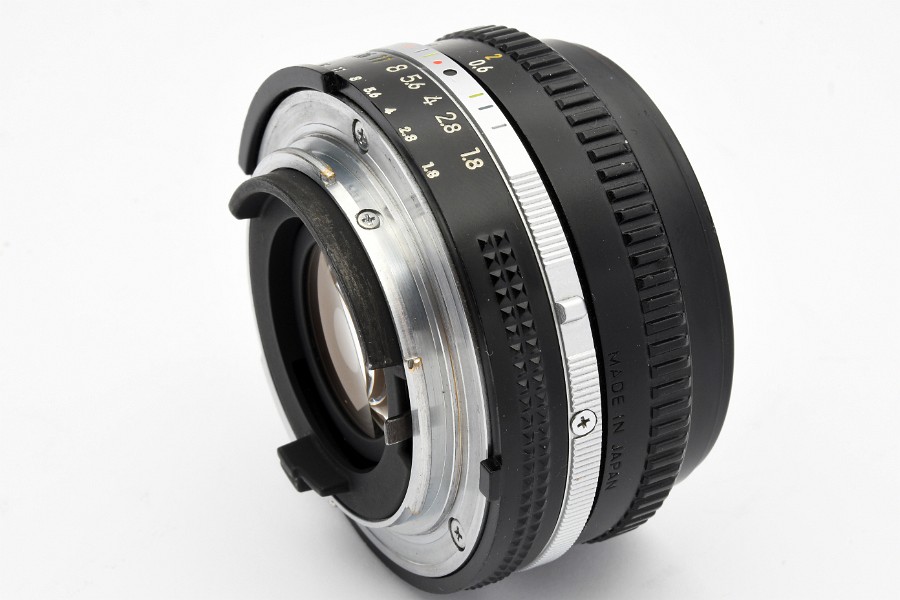

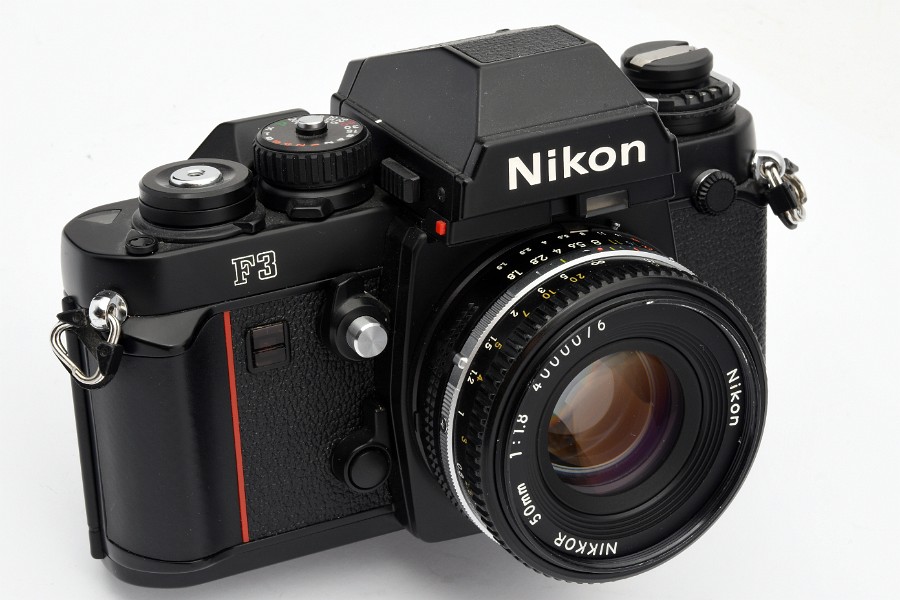

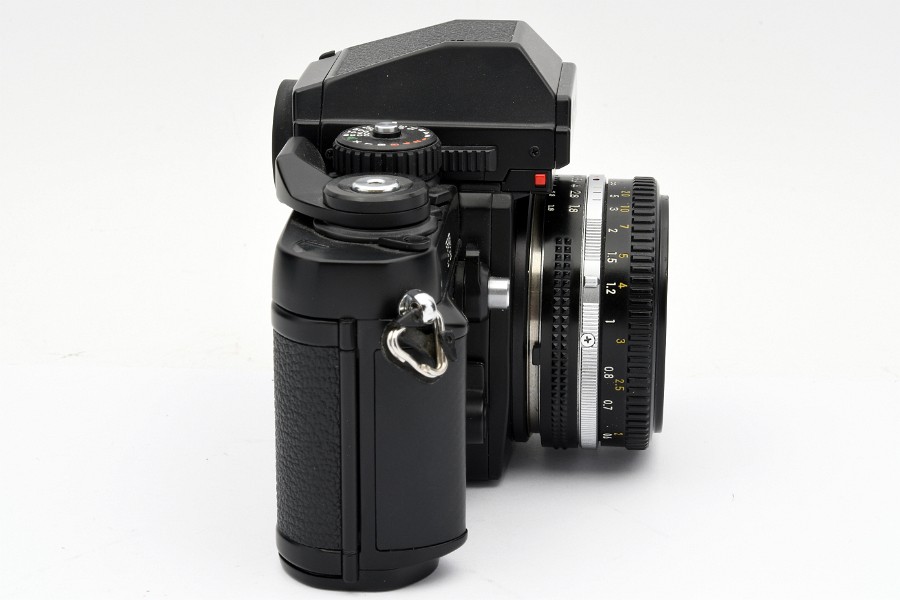

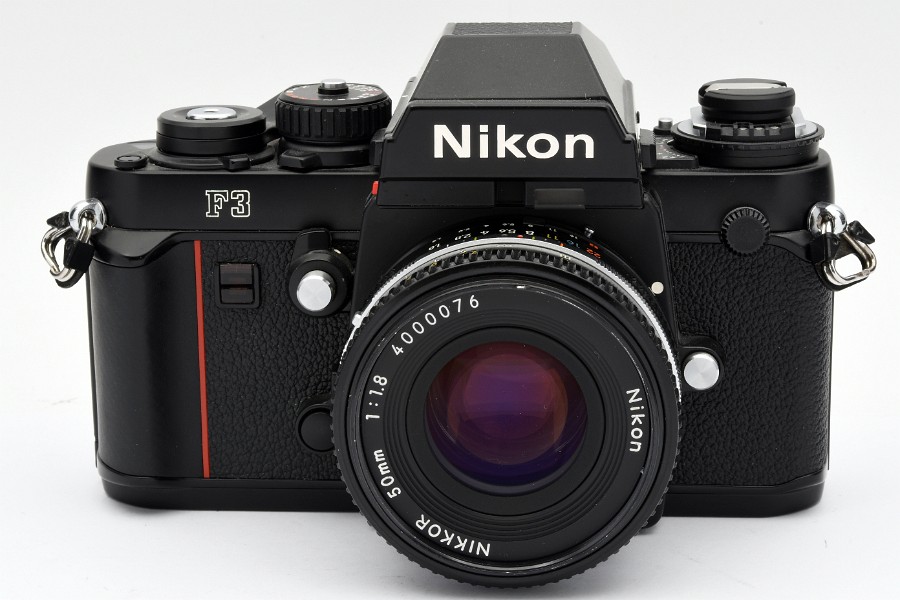

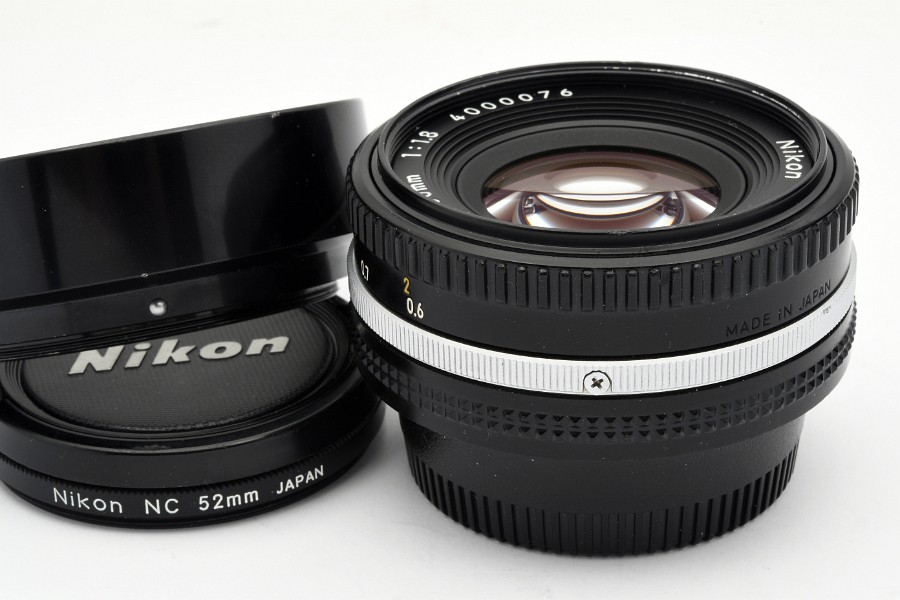

NIKKOR 50mm 1:1.8 AIS 4000076

mouseover to enlarge

«Nikon»
Production year 1985
Short nose (Pancake lens)
76th 50/1.8 «New» AIS lens produced (first 50/1.8 «New» AIS lens was No.4000001)
6 elements in 5 groups, Picture angle 46°
Stepped front ring, filter ∅ 52mm
Narrow plastic focusing ring, lengthwise serrated

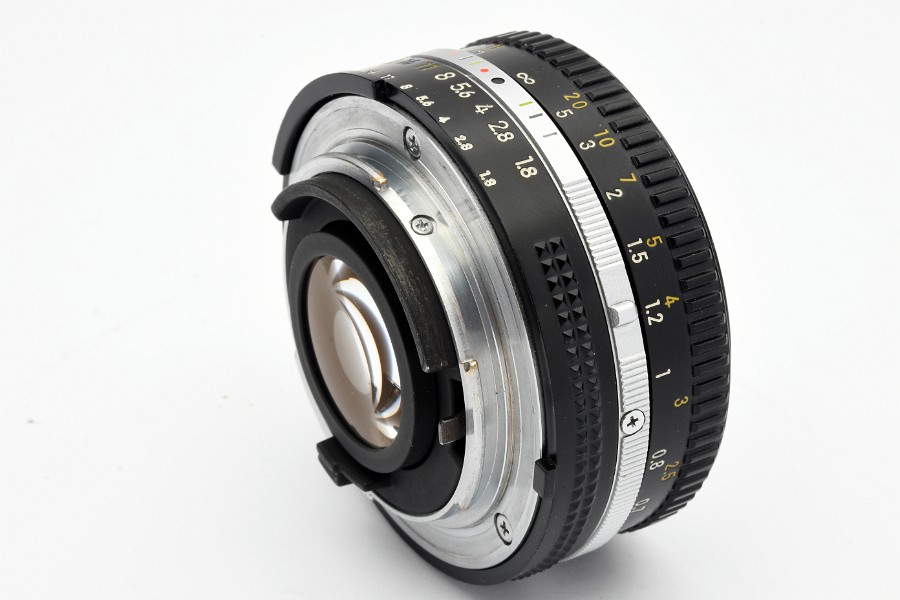

Distance scale graduated in meters and feet from 0.6m (2 ft) to infinity (∞)
«MADE IN JAPAN» on black focusing ring («M» with vertical sides)
Narrow AIS coupled aperture setting ring without prong

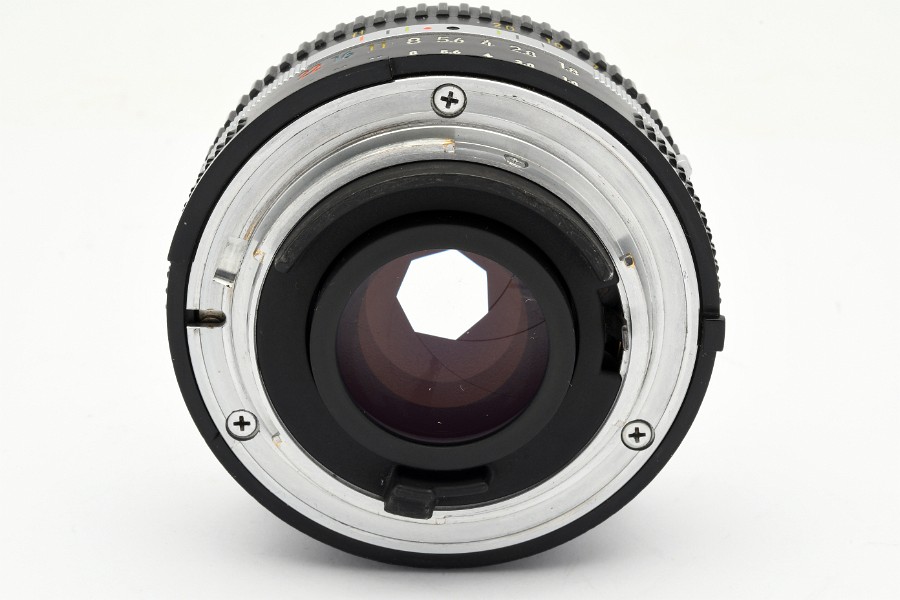

Aperture scale f/1.8 to f/22, 7 iris blades
Bayonet fixed by 3 cross-head screws
Dimensions approx. 63.5 ∅ x 36.5 mm
Weight approx. 145g
Nikon 52mm snap-on front lens cap
Nikon LF-1 rear lens cap

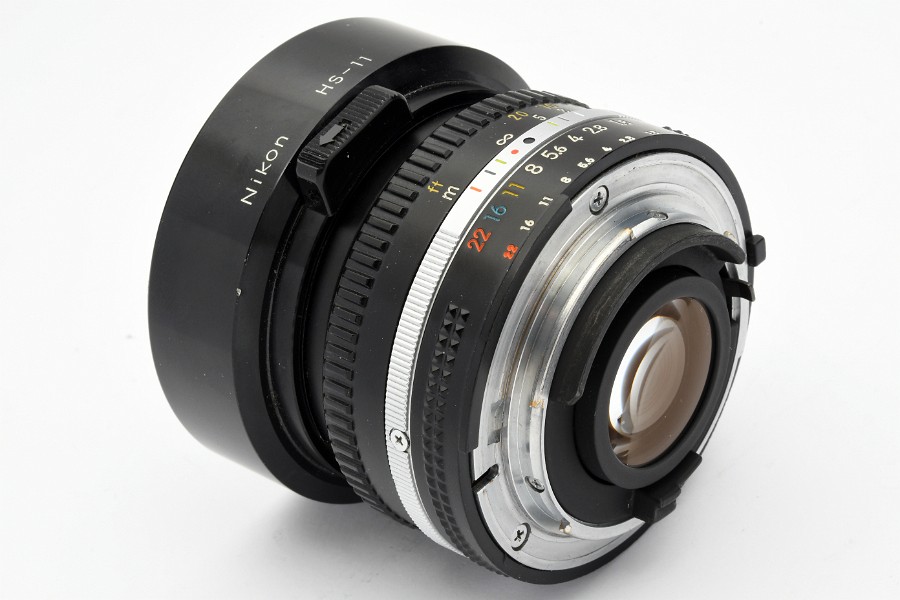

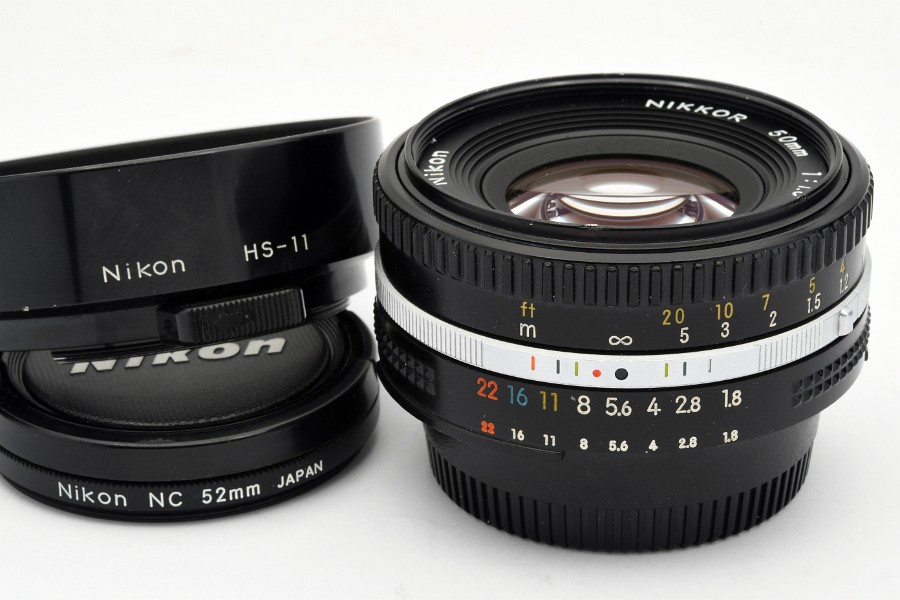

Nikon HS-11 52mm snap-on lens hood
Nikon NC 52mm screw-in filter, black rim
