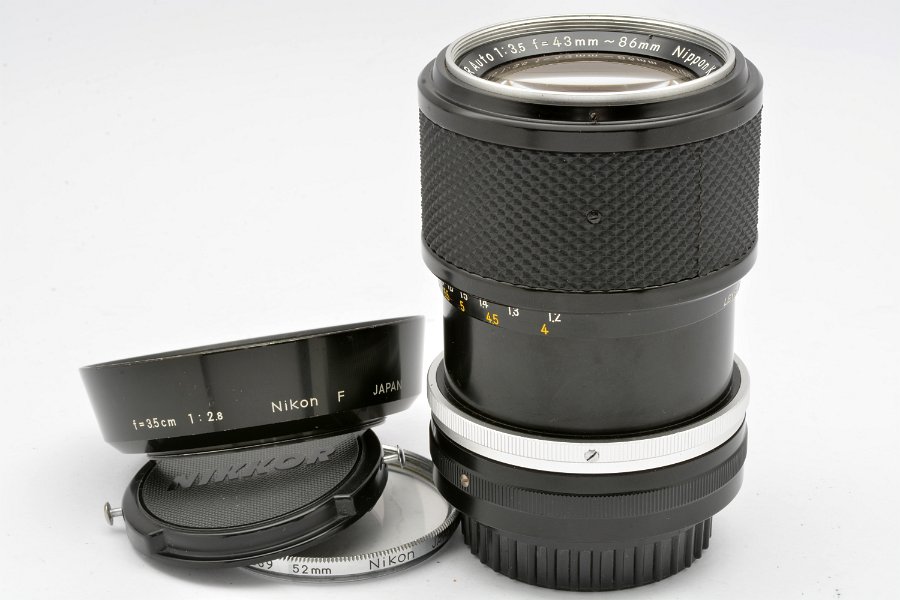

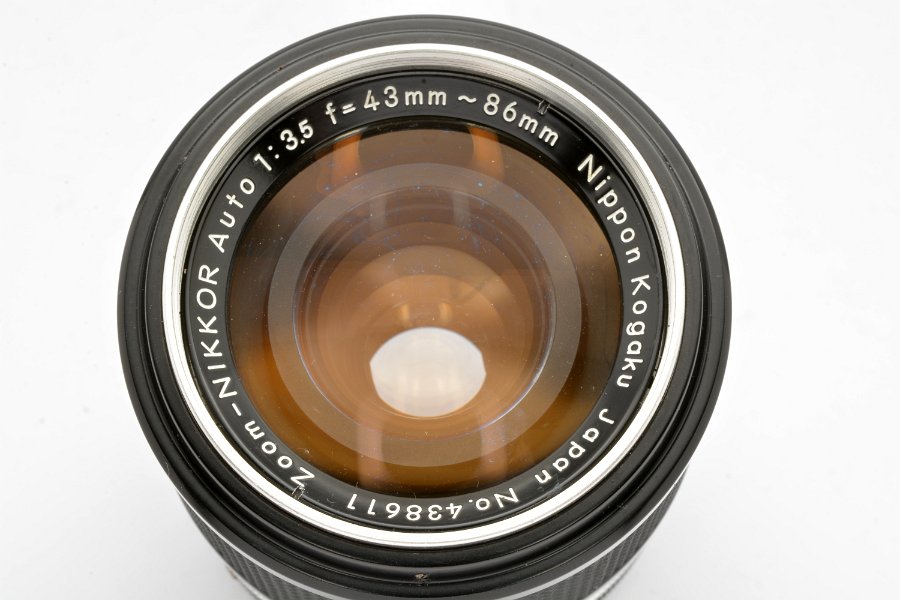

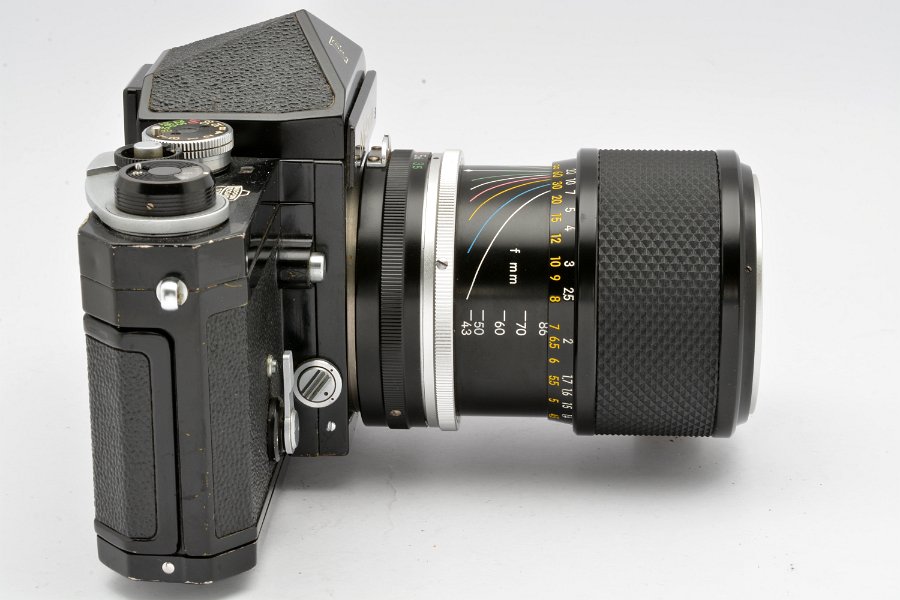

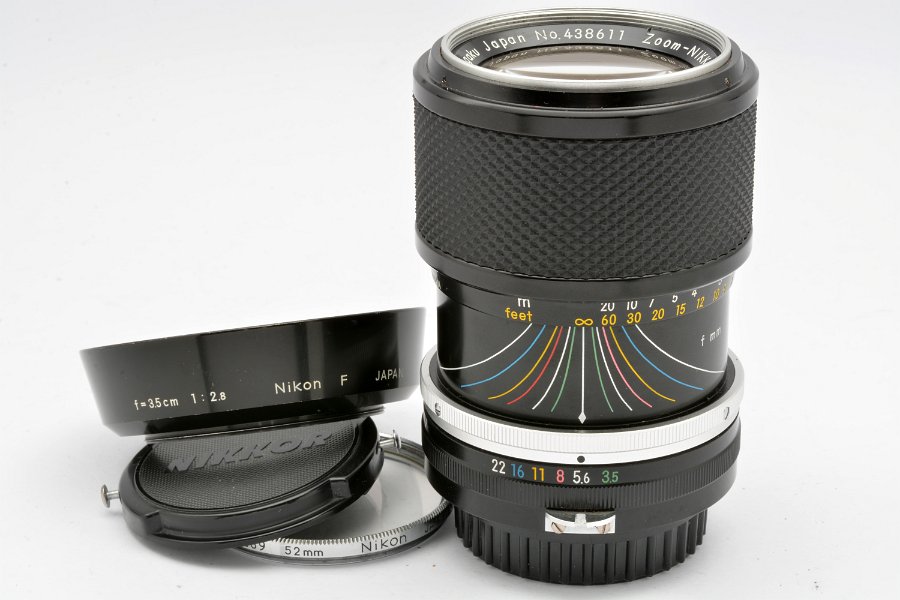

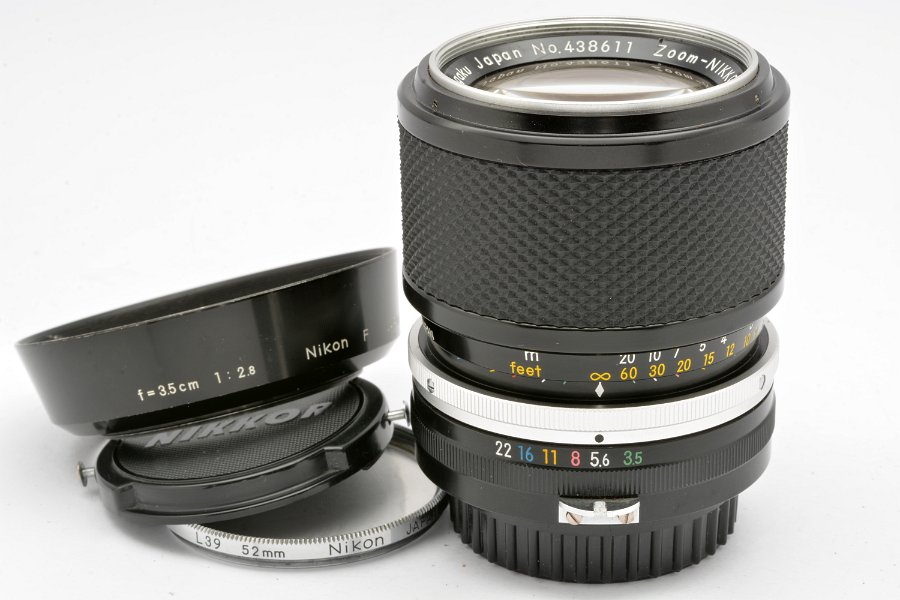

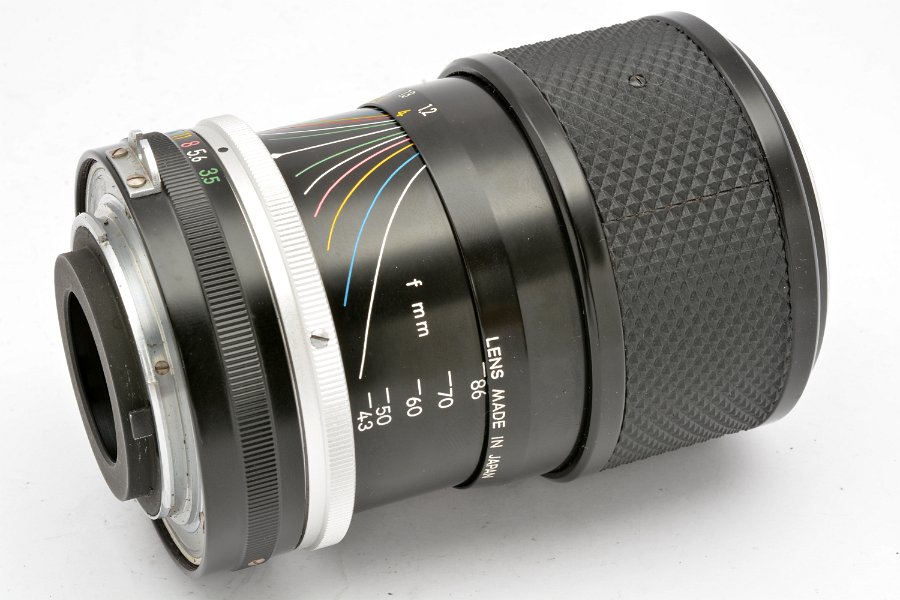

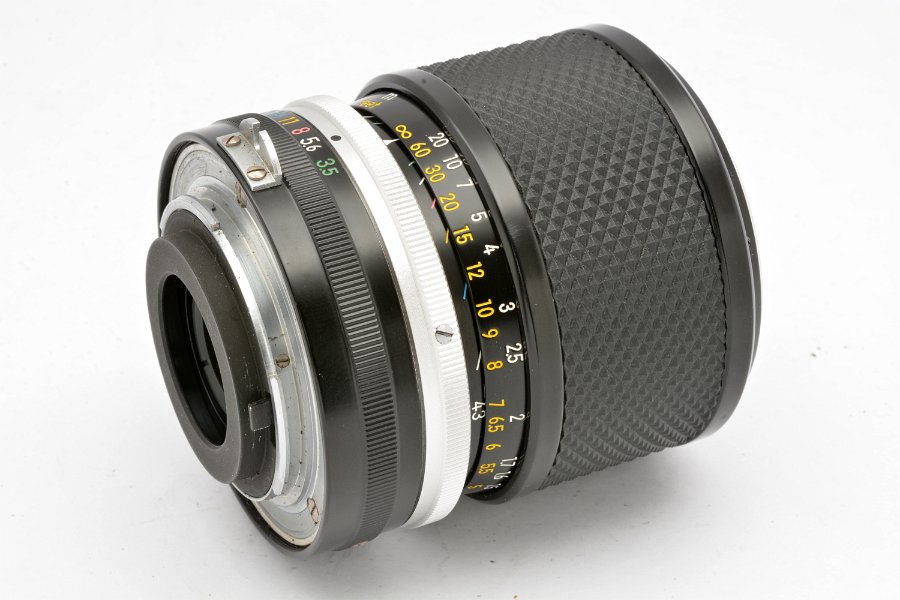

Zoom-NIKKOR Auto 1:3.5 f=43mm~86mm No.438611
mouseover to enlarge
- «Nippon Kogaku Japan», Production year 1963
- First 43-86mm lens produced (yes, the very first 43-86mm lens was No.438611!)
- 9 elements in 7 groups
- Picture angle 53° to 28°30′
- Chrome front ring, filter ∅ 52mm
- Distance scale graduated in feet and meters from 4 ft. (1.2m) to infinity (∞)
- 1-ring-zoom, f-scale 43, 50, 60, 70, 86mm with dash marks
- «LENS MADE IN JAPAN» on black focusing ring («M» with slanted sides)
- Aperture scale f/3.5 to f/22, 6 iris blades
- Bayonet fixed by 3 slot screws
- Dimensions approx. 65mm ∅ x 78mm
- Weight approx. 410g
- NIKKOR 52mm snap-on front lens cap
- NIPPON KOGAKU F rear lens cap
- Nikon F 52mm screw-in lens hood, «f=3.5cm 1:2.8»
- Nikon L39 52mm screw-in filter, chrome rim
