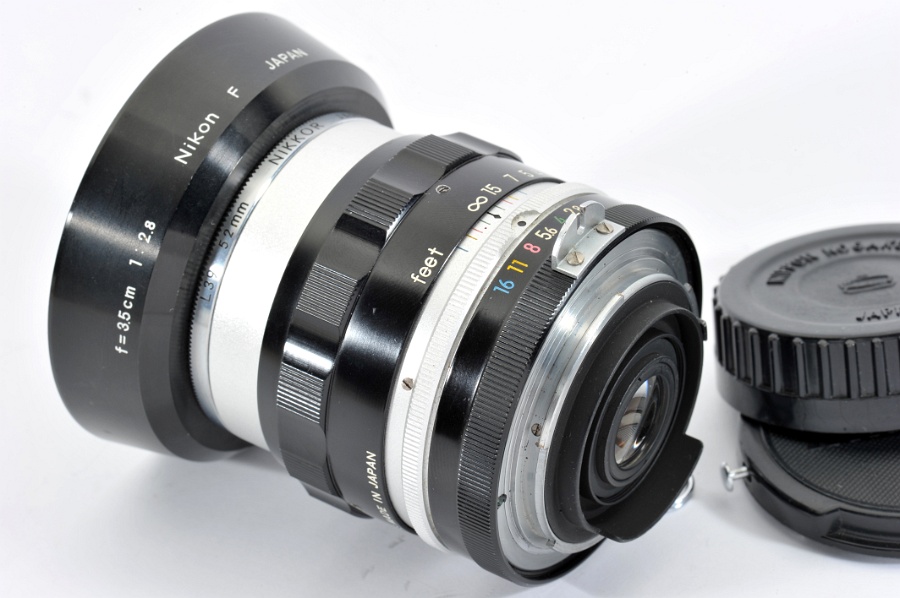

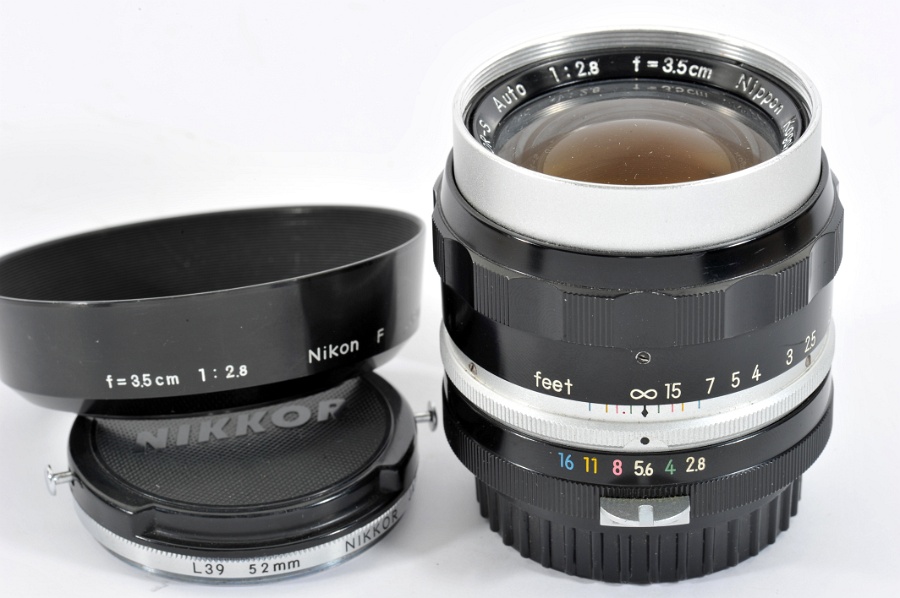

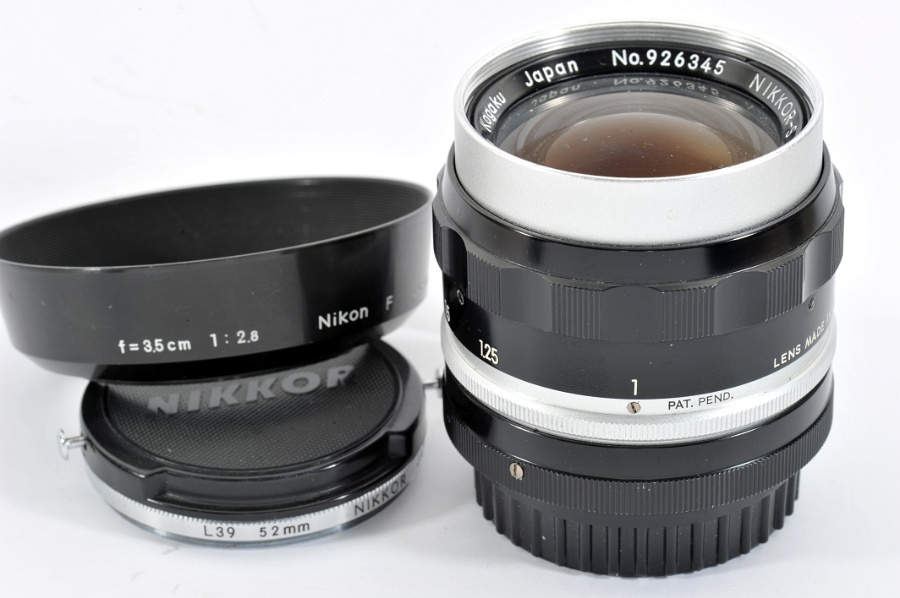

NIKKOR-S Auto 1:2.8 f=3.5cm No.926345
mouseover to enlarge
- «Nippon Kogaku Japan»
- production year 1962
- first 3.5cm lens was No.920101
- 7 elements in 5 groups
- picture angle 62°
- chrome front ring, filter ∅ 52mm
- distance scale graduated in feet only from 1 ft. (0.3m) to infinity (∞)
- «LENS MADE IN JAPAN» on black focusing ring («M» with slanted sides)
- «PAT.PEND.» on chrome lens barrel
- aperture scale f/2.8 to f/16
- 6 iris blades
- no bayonet screws
- dimensions approx. 62mm ∅ x 68 mm
- weight approx. 200g
- NIKKOR 52mm snap-on front lens cap
- NIPPON KOGAKU F rear lens cap
- Nikon 52mm F 3.5cm 1:2.8 screw-in lens hood
- NIKKOR 52mm L39 screw-in filter, chrome rim
